Vibro Feeder

Feeders Vibrating Feeder Vibro Feeder

01FD-35-120S

  • 01
  • 02

Using the Uras Vibrator as a source of vibration, Uras Feeders provide powerful and reliable feeding and segmenting of material.

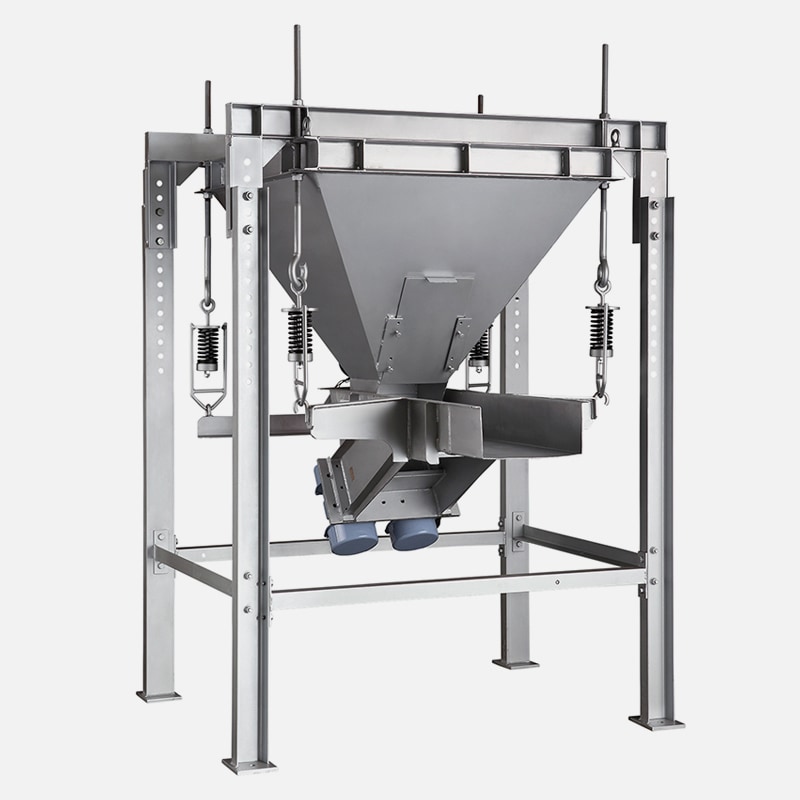

Using two Uras Vibrators, "The Vibro Feeder" generates linear vibration, allowing it to uniformly feed granular materials. The Vibro Feeder is not affected by direct pressure from the hopper, is ideal for feeding sticky materials, and requires very little maintenance. Through the use of a frequency drive, the feeding speed can be adjusted. The vibro feeder can be used in any environment, including outdoors, clean room and sterile environments, and with flamable materials where there is risk of ignition.


Details about this product

Advantages

  • Feeds uniformly even for sticky materials and changing loads.
  • Extensive lineup allows for selection of a feeder that perfectly suits your needs.
  • Low noise operation with Uras Vibrators.

Primary Applications

Conveying cast parts, fixed rate feeding of construction materials from a hopper, conveying of nickel briquettes, feeding galvanized iron alloy powder to a magnetic separator, feeding materials heated to 950°C, feeding electronics waste materials, feeding incinerated ash to a pulverizing machine, feeding aluminum oxide to a circular screen (two-way type), feeding resin pellets, feeding wet coal, conveying soy protein (with steam jacket), feeding lead scrap to a melting furnace, handling shell fish, conveying refined starches, conveying metal powders.

Materials that can be handled

Activated Coal, Alumina, Alumina Metal Powder, Board Scrap, Ceramics, Crushed Stone, Glass Bottles, Glass Fiber, Gravel, Limestone, Oil Coke, Sintered Ores, Shredder Dust, Soy Pomace, Soy Powder, Wieners

Primary Users

Automotive, Ceramics, Chemical, Food, Medicine, Mining, Recycling, Rock Crushing, Semiconductors, Steel, Transportation (Ship Building)

Standard Specifications

Model Trough Dimensions (mm) Power
(kw)
Handling Capacity (t/h)*1
WidthLength Gravel*2
FD-35-90LB 350 900 0.26 60
FD-40-90LB 400 900 0.26 70
FD-50-90LB 500 900 0.5 160
FD-60-100LB 600 1000 0.5 170
FD-70-100LB 700 1000 0.8 250
FD-80-120LB 800 1200 1.7 380
FD-95-150LB 950 1500 3.0 700
FD-125-150LB 1250 1500 3.0 800
FD-150-180LB 1500 1800 7.4 1200
FD-180-180LB 1800 1800 15 2000
FD-210-210LB 2100 2100 18 3300
FD-240-240LB 2400 2400 18 3500
  • *1: Trough downward inclination of 12° (FD-210-210LB and below have downward inclination of 15°)
  • *2: Bulk density ρ=1.6 (kg/L)
